How To Repair Gusset Plates

Submitted past DonHester on Wed, 03/15/2017 - 21:10.

Truss Damage! What practice I do? Wenatchee Habitation Inspector

Things happen, information technology could exist from mishap, material issues, job-site damage or installation or repair harm.

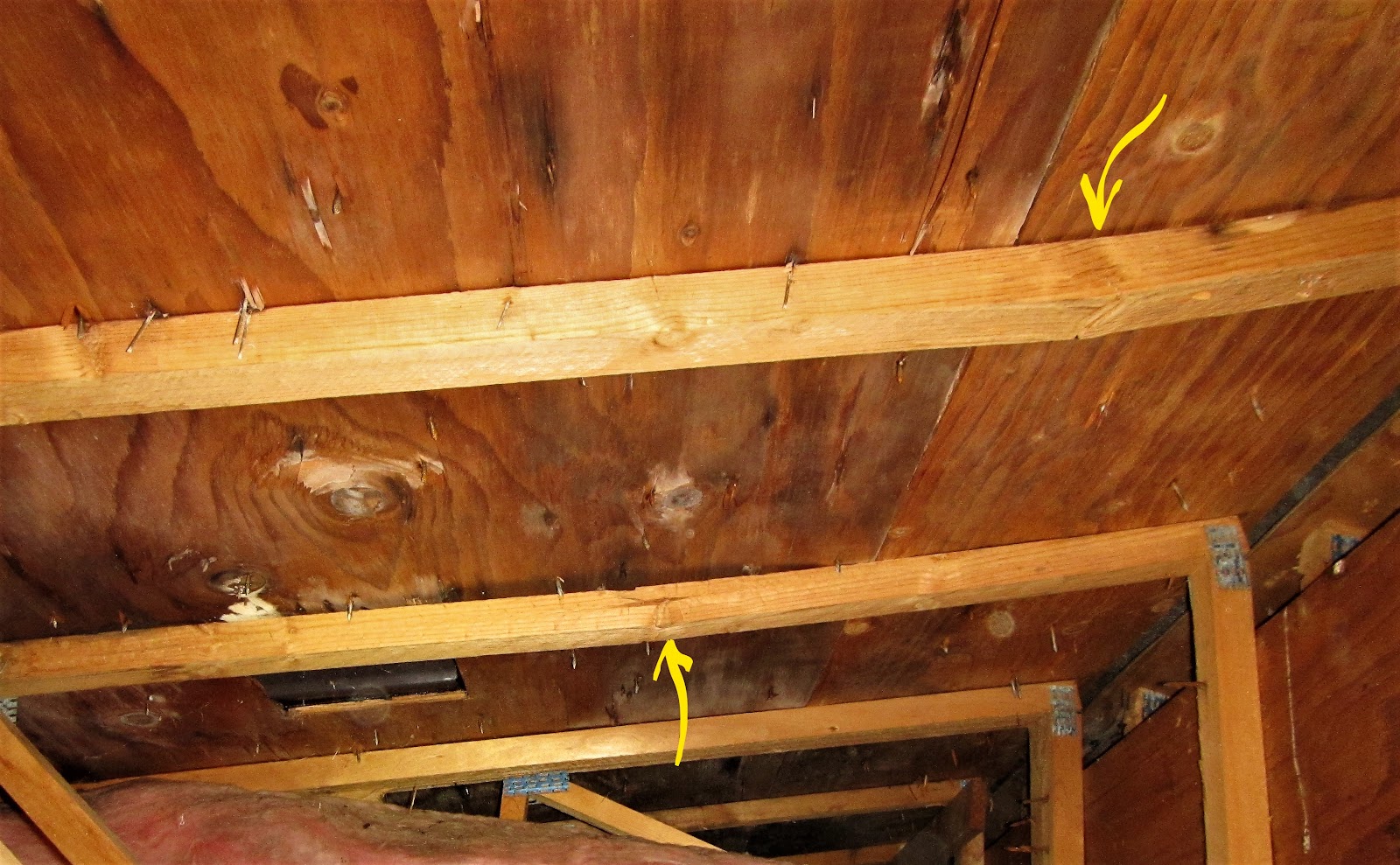

Truss Harm at knots

Gusset Plate lifting

The next question is what to practise? The respond if from the the Structural Edifice Components Clan (SBCA) and Truss Plate Found who are the guiding body for trusses.

From the SBCA-

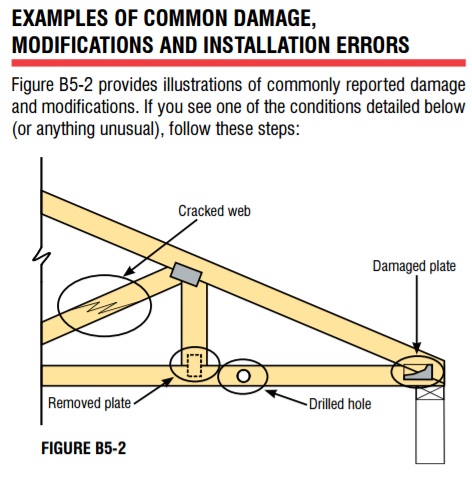

FOLLOW THESE STEPS TO Right Damage, Job- SITE MODIFICATIONS OR INSTALLATION ERRORS

If a Truss is damaged, altered or improperly installed:

1. Temporarily brace or support the Truss to prevent further damage to the Truss and danger to workers.

2. Written report damage, alterations or installation errors to the Truss Manufacturer immediately.

3. Do non attempt to repair the Truss without a Repair Detail from the Building Designer, Truss Designer or Truss Manufacturer.

4. Prior to beginning the repair, lay the Truss apartment on a solid, level surface. If the Truss is already installed, shore upwardly the Truss to relieve any Load.

5. Repair the Truss by following the information provided in the Repair Detail exactly. Brand sure to use the correct materials as specified. Seek professional guidance if anything is unclear.

6. Keep the Repair Particular in case the Edifice Official, Edifice Designer or Owner requests information technology.

seven. If the Repair Particular is not for the specific field condition you are repairing, do not utilize it. Always follow the Repair Particular prepared for your specific situation.

viii. If the designed repair cannot be achieved, call the Edifice Designer, Truss Designer or Truss Manufacturer.

Per SBCA- COMMON REPAIR TECHNIQUES
Each Repair Detail is generated on a case-by-case footing, since Trusses and the blazon of damage vary considerably.

Some of the more mutual repairs specified by Truss Designers include:

• Plywood or oriented strand board (OSB) gussets over damaged plates or joints

• Metal nail-on plates

• Lumber scabs or repair frames over broken chords and/or Webs

• Truss Plates installed by a portable press

As a home inspector I am going to e'er recommend engineering for repairs. If you can find who the truss manufacturer is this will be the all-time way and nigh likely the cheapest fashion to go a qualified repair. If a engineered is employed he or she volition need to run total calculations and obviously this will be more than costly.

"Any man is liable to err, only a fool persists in error."

Marcus Tullius Cicero

If you discover any errors or take additional information that would expand on any lawmaking, edifice standards or manufacturer requirements delight allow me know.
